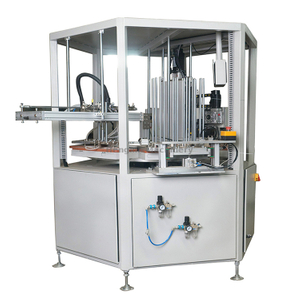

Pad Printing Machine for Washing Machine Control Panel

Technical Parameter:

1. PLC control with touch screen;

2. 3-axis servo motor driven;

3. With auto-cleaning pad device;

4. Pad vertical driven by cylinder with stroke setting system;

5. Seven pads working separately;

6. Max print color: 5;

7. No. of print pads: 5 pcs;

8. No. of ink cup: 5 pcs;

9. Max print speed: 300 - 350pcs/hr;

10. Steel plate size: 150*300mm;

11. Print size: 120*150mm;

12. Sealed ink cup system;

13. Ink cup diameter: 135mm;

14. Power: 110 / 220V;

15. Air supply: 5 – 7Bar;
