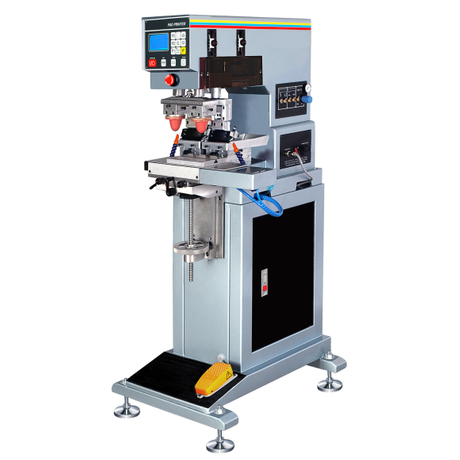

Two Color Pad Printing Machine (MINI2/S)

Function:

1. SCM IC compile action program,kinds of printing model option;

2. Auto 4-digit counter built-in to count printing quantity;

3. Air-frame adopts coin alloy, and metal coating surface;

4. Worktable, printing head and ink tray can be adjusted X. Y. Z direction;

5. The pressure of sucking ink and printing object can be adjusted independently;

6. Scrapper stroke can be adjusted;

7. It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification;

8. The speed of all the cylinders have an independent regulator valve;

9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component;

10. Each adjustable location has scale logo;

11. The machine is running fast, it is steady and low voice;

12.

Technical Parameter:

Print Color	2
Machine Speed	800 cycles/hr
Steel Plate Size	100*100 mm
Print Size	60*60 mm
Pad Vertical Stroke	50 mm
Pad Transverse Stroke	125 mm
Max Height of Object	180 mm
Central Distance of Ink Tray	125 mm
Scraper Driven	Pneumatic mechanical valve drives cylinder up and down
Scraper Pressure Control	Regulating valve
Shuttle Worktable Driven	Pneumatic
Shuttle Worktable Located	Pneumatic bolt with oil buffer
Power Supply	AC 110/220V, 50/60Mhz
Air Supply	5 ~7 Bar
Machine Dimension	600*550*1200 mm
Machine Weight	85 kg
