HX-3050-S
HX
8443.1921.90

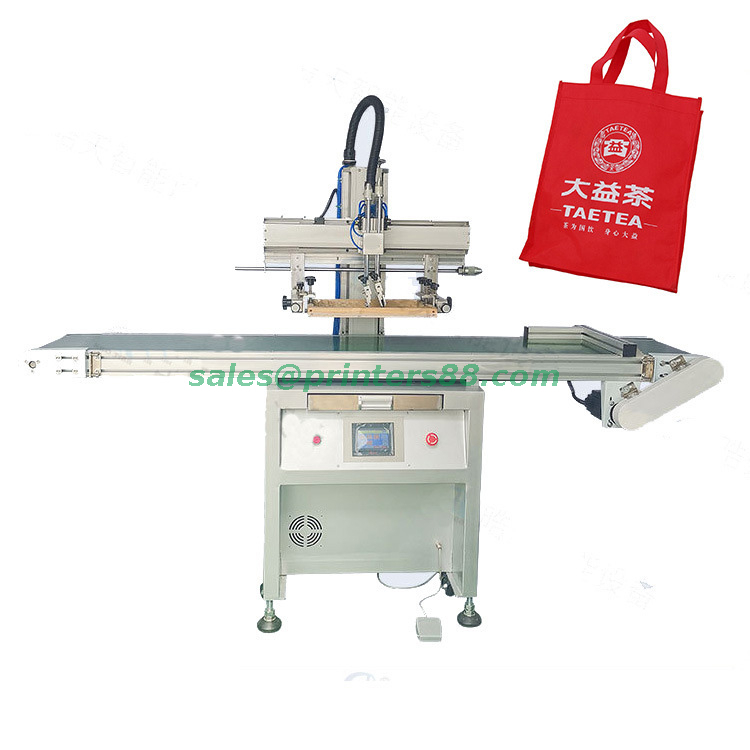

Plastic Carrier Bag Screen Printer for Non-woven Bags
Application:
It's suitable for kinds of flat products non-precision printing, such as various plastic bags, non-woven bags, hard sheets, etc.
Introduction:
1. Control system: PLC with human machine interface;
2. Converyor system: 600mm PVC belt with speed adjustable;
3. Max print size 300*500mm, print size is adjustable;
4. Max screen frame size 500*850mm ;
5. Printing pressure, printing position is adjustable;
Specification:
1. Using conveyor belt continuous automatic transmission printing to facilitate feeding and improve production;
2. Scraper constant pressure device, printing pressure, printing area, and printing speed are adjustable;
3. PLC programmable touch screen control, simple operation, easy to use;
4. Pneumatic lifting device, convenient replacement and cleaning of the net plate;
5. Pneumatic flat lifting mechanism, with adjustable printing height and strong adaptability;
6. Aluminum profile frame, with pulley movement, convenient durability and stability;
Technical Parameter:
Model: | HX-3050-S | L/R cylinder | AIRTAC |
Max print area | 300*500mm | U/D cylinder | AIRTAC |
Max frame size | 500*850mm | Solenoid valve | AIRTAC |
Belt width | 600mm | Touch-screen | WEVIEW |
Belt length | 2500mm | Scraper size | 50*9mm |
Machine size | 2500*1100*1600mm | Ink knife material | Aluminum material |
Machine weight | 250kg | Limit position | Oil buffer |
Package size | 2600*1200*1800mm | U/D sensor | Magnetic sensor |
Package weight | 320kg | L/R sensor | Photoelectric switch |
